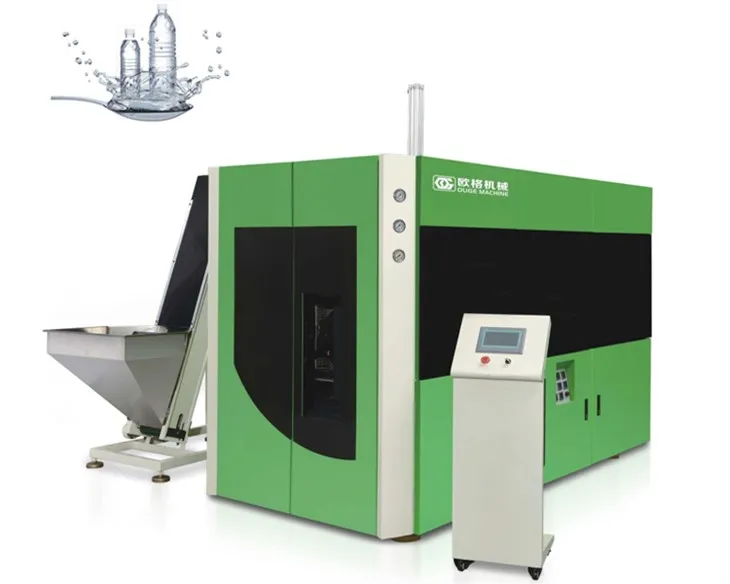

Plastik shishani puflash mashinasi
1. Xususiyatlari
●OGB-4S 4cavity automatic bottle blowing machine can blow 100ml-1500ml bottles.
●An automatic lubrication oil device protects the machine well.
●Servo motor drive system with synchronized base blow mold for fast response operation, precision blowing valve for high output.
●A horizontal rotation transfer system makes the construction and maintenance easier, reducing the cost of spare part change.
2. Machine specification
| OGB-4S | ||||
MAHSULOT | Nazariy chiqish | PSC/H | 5500 | |
| Maksimal hajm | L | 1.5 | ||
| Maksimal balandlik | mm | 360 | ||
| Maksimal diametri | mm | 105 | ||
MOLD | Bo'shliq | / | 4 | |
| Qolib plastinka o'lchami (LxH) | mm | 600x360 | ||
Qolib qalinligi | mm | 188 | ||
Qolib ochilish zarbasi | mm | 110 | ||
ELEKTR | Quvvat | kVt | 220-380v/50-60hz | |
| Umumiy quvvat | kVt | 25 | ||
| Isitish quvvati | kVt | 22 | ||
HAVO TIZIMI | Ish bosimi | Mpa | 0.8-1.0 | |
| Harakat havo sarflaydi | m³/min | 1,6 dan katta yoki teng | ||
| Puflash bosimi | Mpa | 2.6-4.0 | ||
| Puflash havo sarflaydi | m³/min | 4,8 dan katta yoki teng | ||
MOSHINA | Puflagich o'lchami (LxWxH) | m | 3.5x1.5x2.2 | |
| Puflagichning og'irligi | KG | 3200 | ||
Avtomatik yuklovchi o'lchamini oldindan tuzing (LxWxH) | m | 1.9x1.0x2.2 | ||
| Avtomatik yuklagichni oldindan tayyorlangvazn | KG | 300 | ||
3. Qo'llash sohalari
Ichimlik
Ziravorlar
Mineral suv
4. Mashina detallari
5. Ko'rgazma
2018 CHINAPLAS 122-KANTON yarmarkasi
2017 SWOP 2019 Vyetnam
6. Bizning hamkorlarimiz
 |
7. Biz bilan bog'laning
Issiq teglar: plastik shishani puflash mashinasi, Xitoy, ishlab chiqaruvchilar, etkazib beruvchilar, zavod
